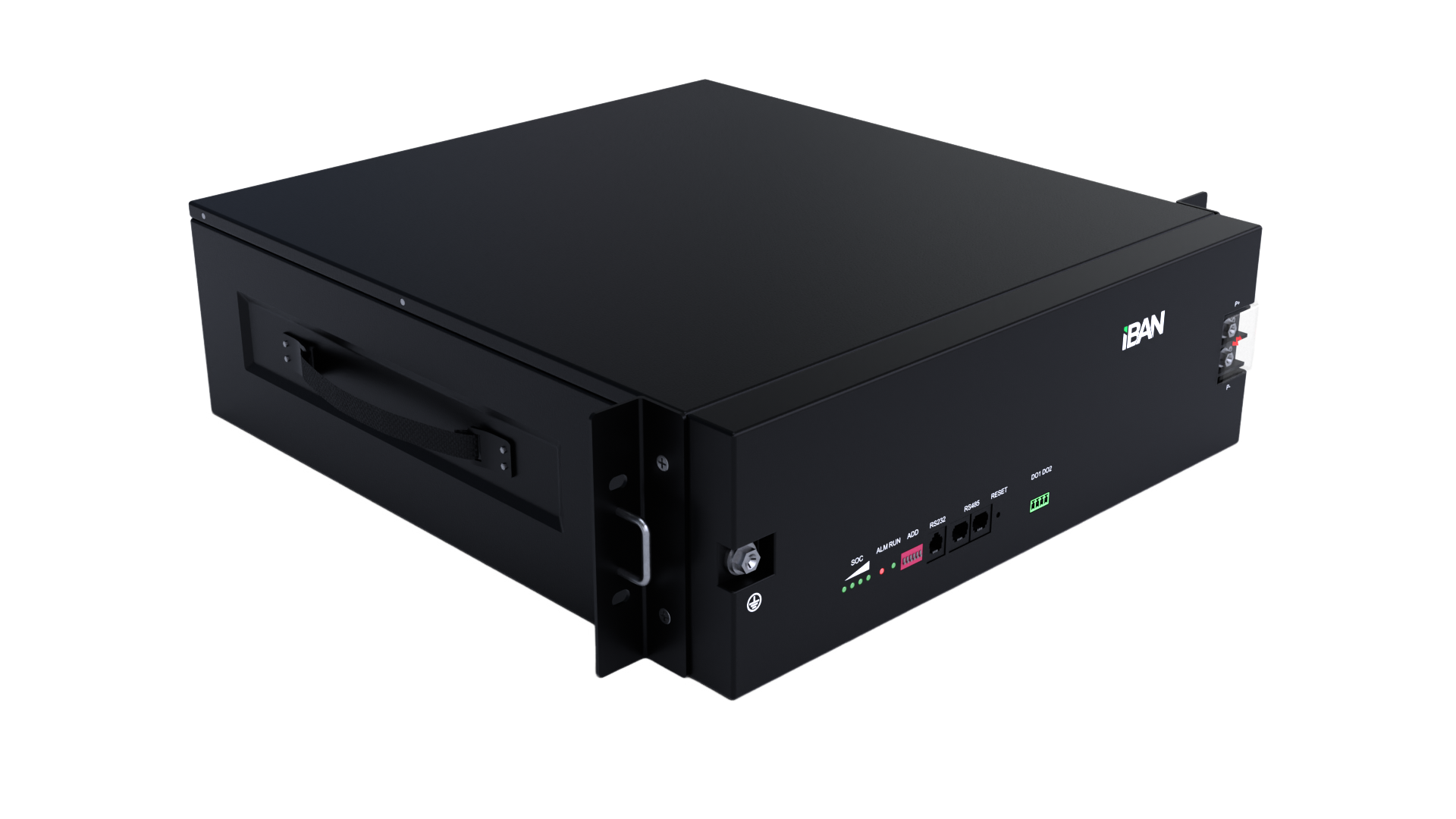

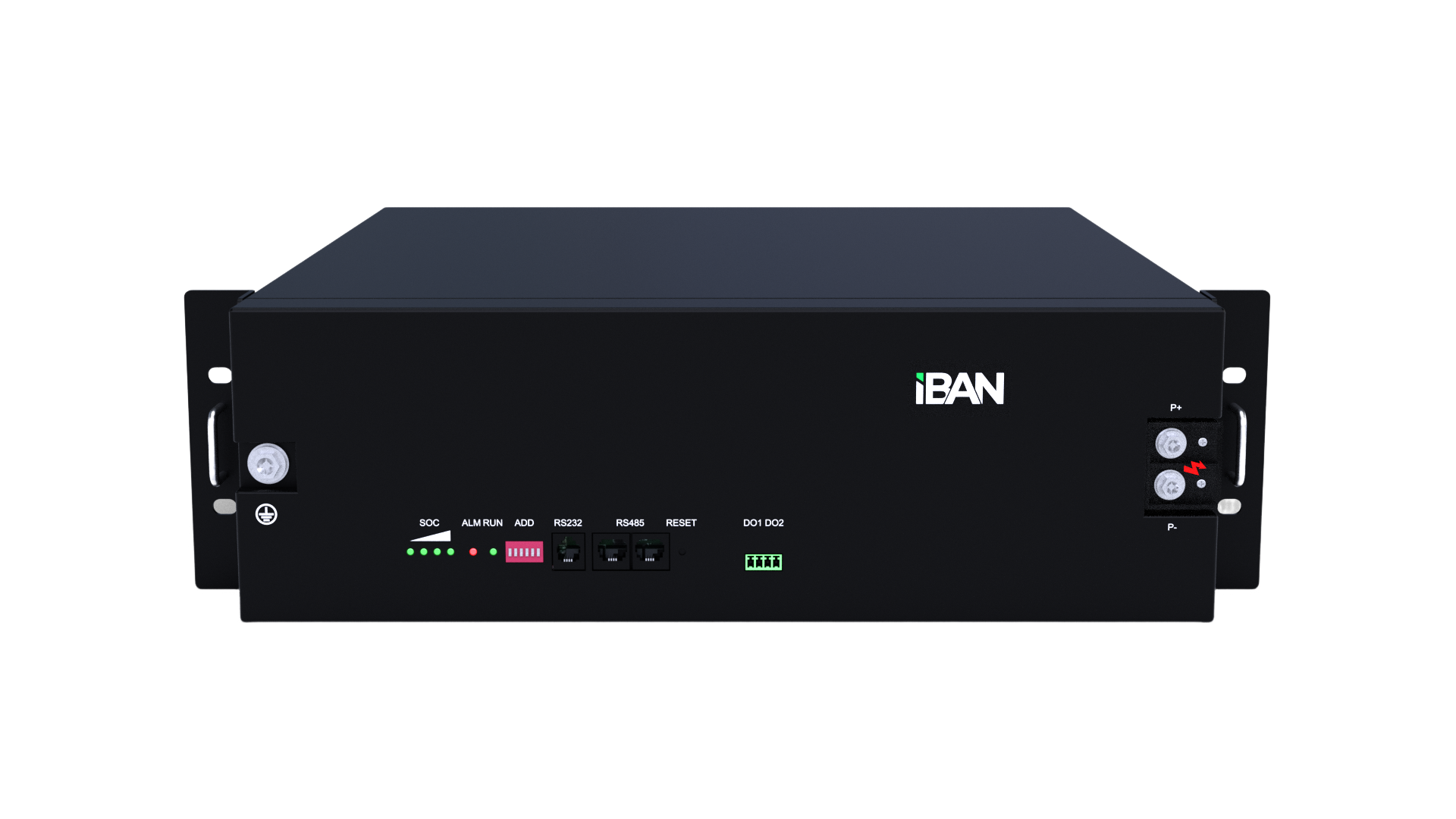

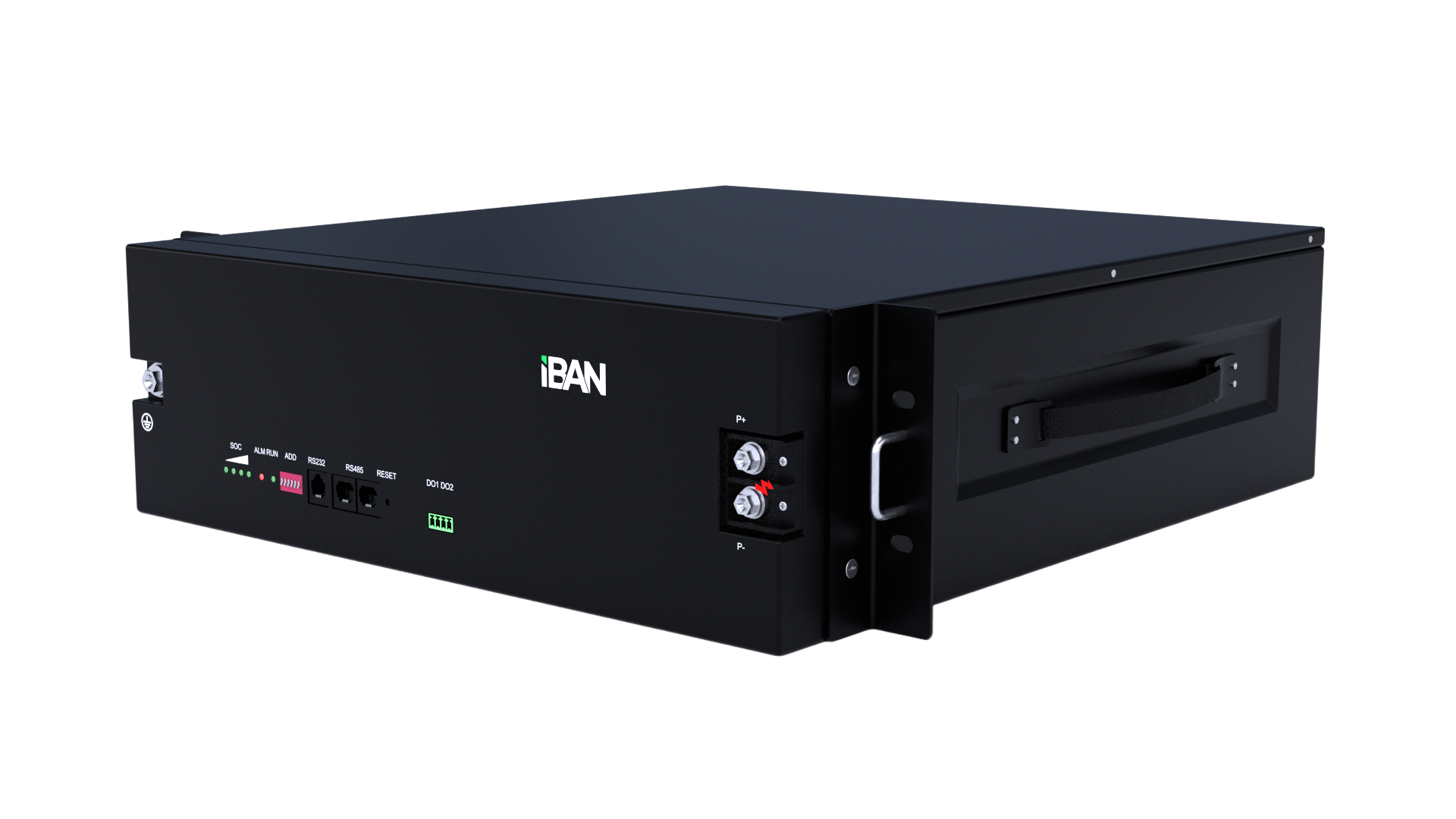

EBS 48100
Classic Battery
# 19” #3U

High-Density, Intelligent, and Scalable

The IBAN Power EBS 48100 LiFePO4 Battery Features A Standard 19” Rack-Mount Design With High Energy Density, Optimizing Space For Telecom Networks. It Supports 16-Cell Parallel Connections And Up To 8 Battery Packs In Parallel, Ensuring Scalable Power Expansion.

With Advanced BMS Integration, It Ensures Precise Charge/Discharge Control, SOC Calibration, And Battery Balancing, While The RS485 Interface Supports Remote Monitoring, Fault Diagnostics, And Alarm Notifications.

Request Product Sheet
EBS 48100
Nominal Voltage
48 V
Nominal Capacity
100 Ah
Maximum Charge Current
100A
Maximum Discharge Current
100A
Discharge Cut-Off Voltage
40.5V
Cycle Life
4000cycle@80%DOD
Operating Temperature
-20°C ~ 55°C
Communication Modules
RS485 / RS232
Weight
39Kg
Dimensions
442mm x 339mm x 130mm

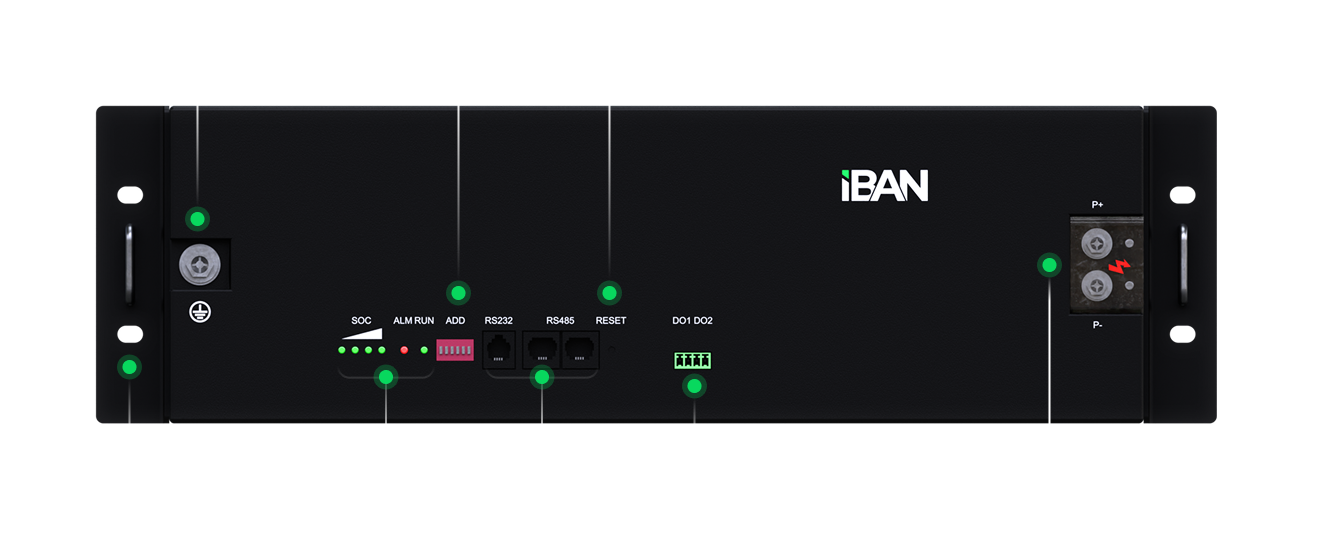

Back Panel

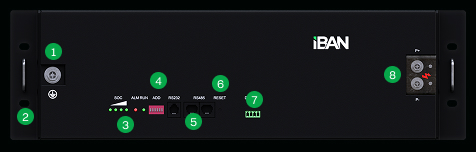

Back Panel Mobile
01
Grounding Point (M6 Screw)
02
Mounting Hole
03
DIP Switch (ADD)
04
Satatus LEDs SOC/Alarm
05
RS232: RJ11 Port
RS485: RJ45 Port
06
Power Output/Input Terminals

Related Solution INDOOR POWER SYSTEM

Related Solution INDOOR POWER SYSTEM

Related Product

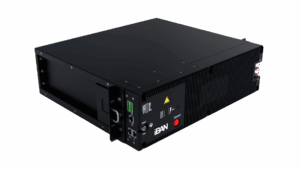

EBS 48100S1
19"
Indoor
3U
EBS 48100S1
442*400*130mm

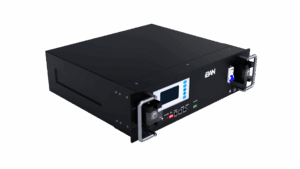

EBS 48100L
19"
Indoor
3U
EBS 48100L
442*409*130mm

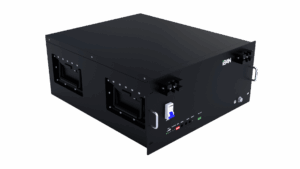

EBS 48200
