EPS 48150
EPS 48150
EPS 48150

High-Density, Intelligent, and Scalable

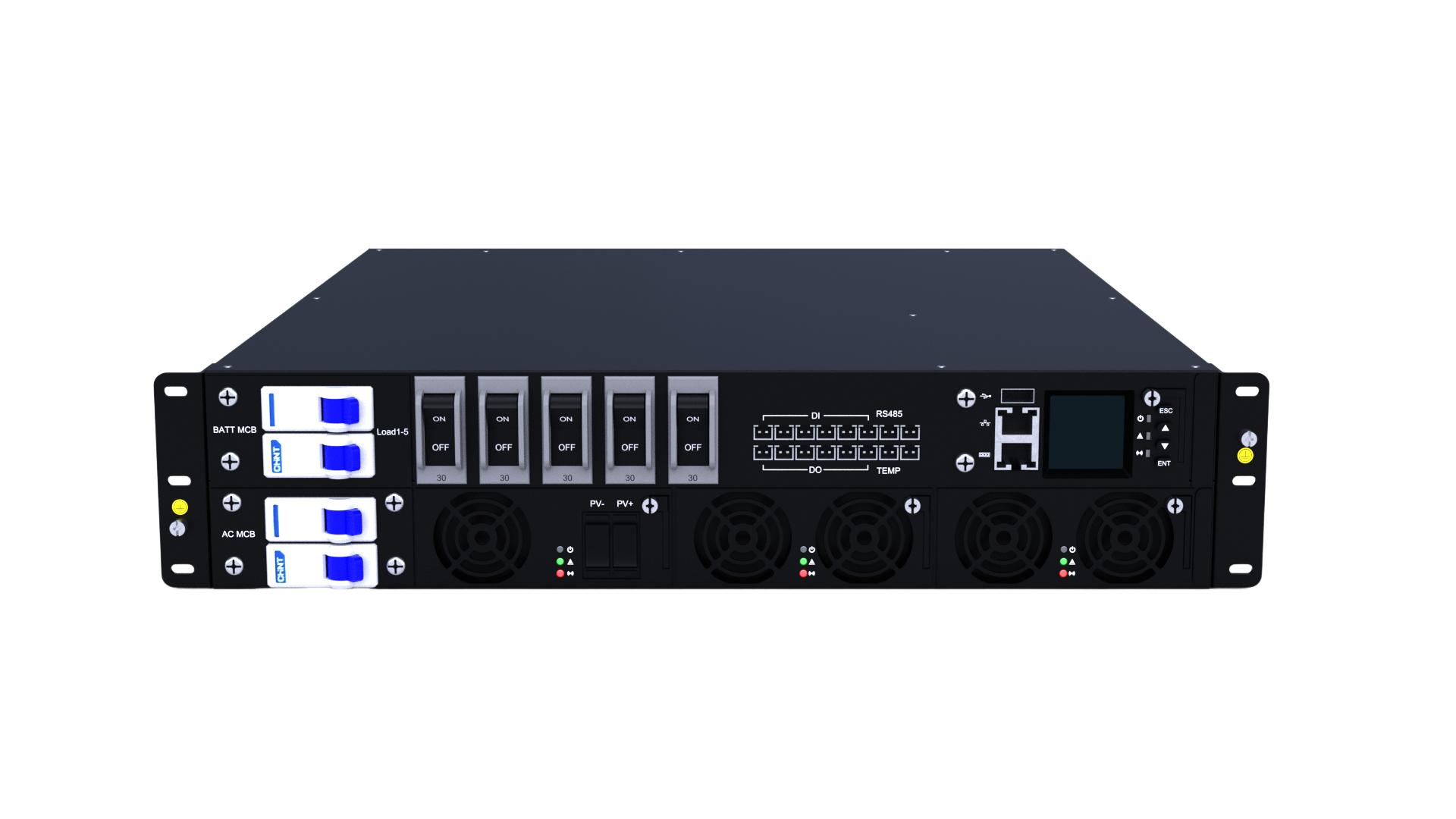

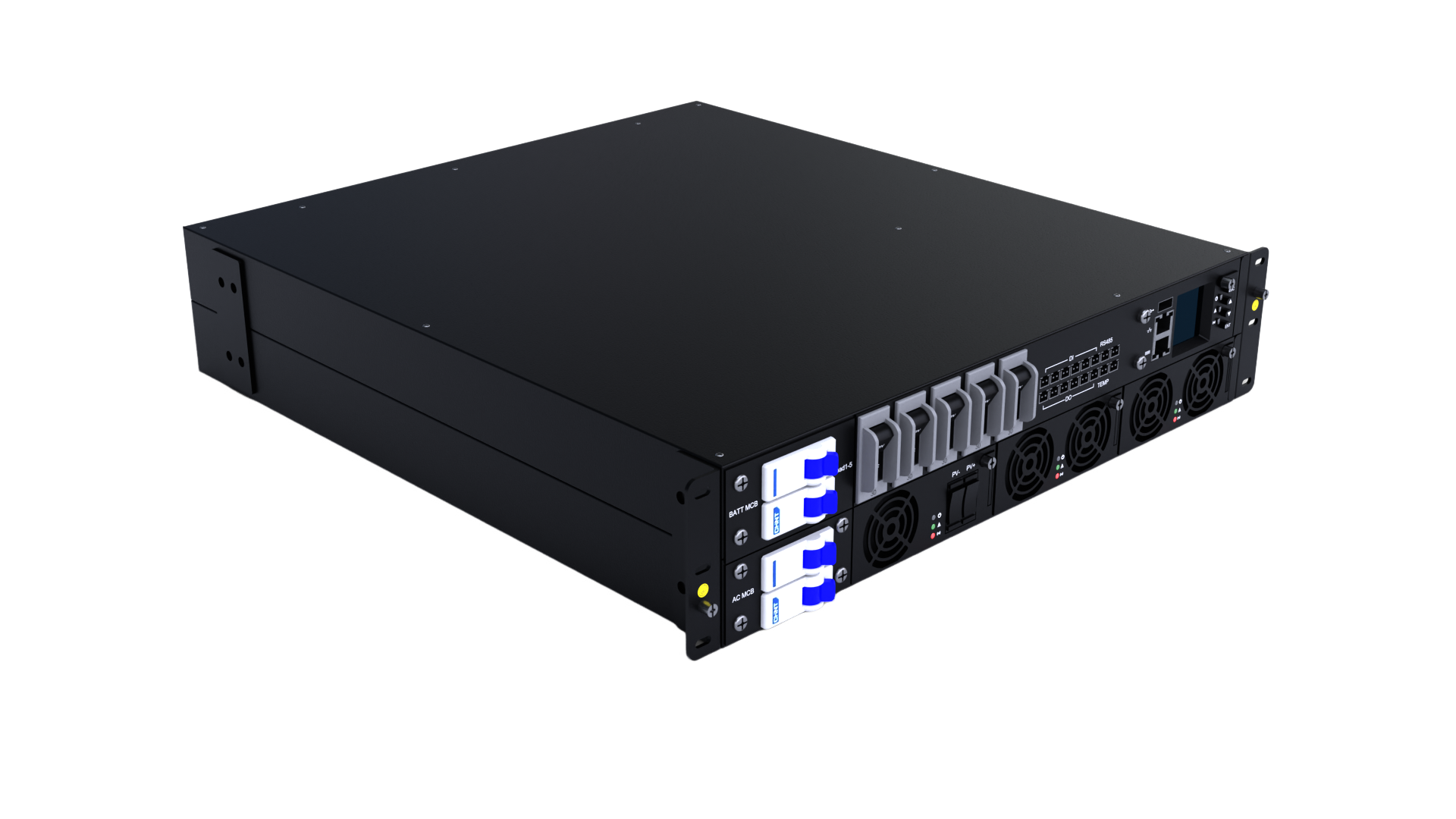

The IBAN POWER EPS 48150 Is A 19″ 2U Rack-Mounted 48V DC Power System For Telecom And Equipment Rooms. It Supports Up To 150A Output With Modular Rectifiers And Delivers Conversion Efficiency Over 96%.

The System Integrates Solar, Grid, And Battery Sources To Provide Stable 48V Power, And Features Hot-Swappable Modules, Battery Protection, And Remote Monitoring Via RS485 And Dry Contact.

Get Quote
Request Product Sheet
EPS 48150
Input Voltage
80-300 Vac
Nominal Input Voltage
220 Vac
Input Frequency
45-65 Hz
Output Voltage
42-58 Vdc
Nominal Output Voltage
54 Vdc
Max Load Output
150 A
Load Distribution
30A×5
Modules
EPS 3000 (50A) / SPS 4000 (75A)
Comunication Modules
RS485 / Ethernet / Dry Contact
Efficiency
>96%
Operating Temperature
-20°C ~ +55°C
Dimensions
445mm x 400mm x 89mm
Back Panel
Back Panel Mobile
01
Grounding Point (M6 Screw)
02
Battery Circuit Breaker
03
Mounting Hole
04
AC Circuit Breaker
05
Load 1 ∼ 5 Circuit Breakers
06
DI/DO Terminals & RS485/ Temp Port
07
Communication Ports
08
LCD Controller
  • High Power Density Modular Design
  • Power Factor Correction (PFC) With PF ≥ 0.99
  • AC / DC Surge And Overvoltage Protection Design
  • Full Fault Protection And Alarm Notifications
  • Ultra-Low EMI, Compliant With CE, NEBS, And YD/T983 Class A Standards
  • Seamless Battery Management: Low Voltage Protection, Load Disconnect, Temperature Compensation, Automatic Voltage Regulation, Current Limiting, Capacity Calculation, And Battery Test
  • Network Management: RS485, Web, And Dry Contact For Remote Monitoring

HYBRID POWER SYSTEM

HYBRID POWER SYSTEM
01
Soft Switching Topology For >96% Conversion Efficiency
02
Hot-Swappable Rectifier Modules For Easy Maintenance And Replacement
