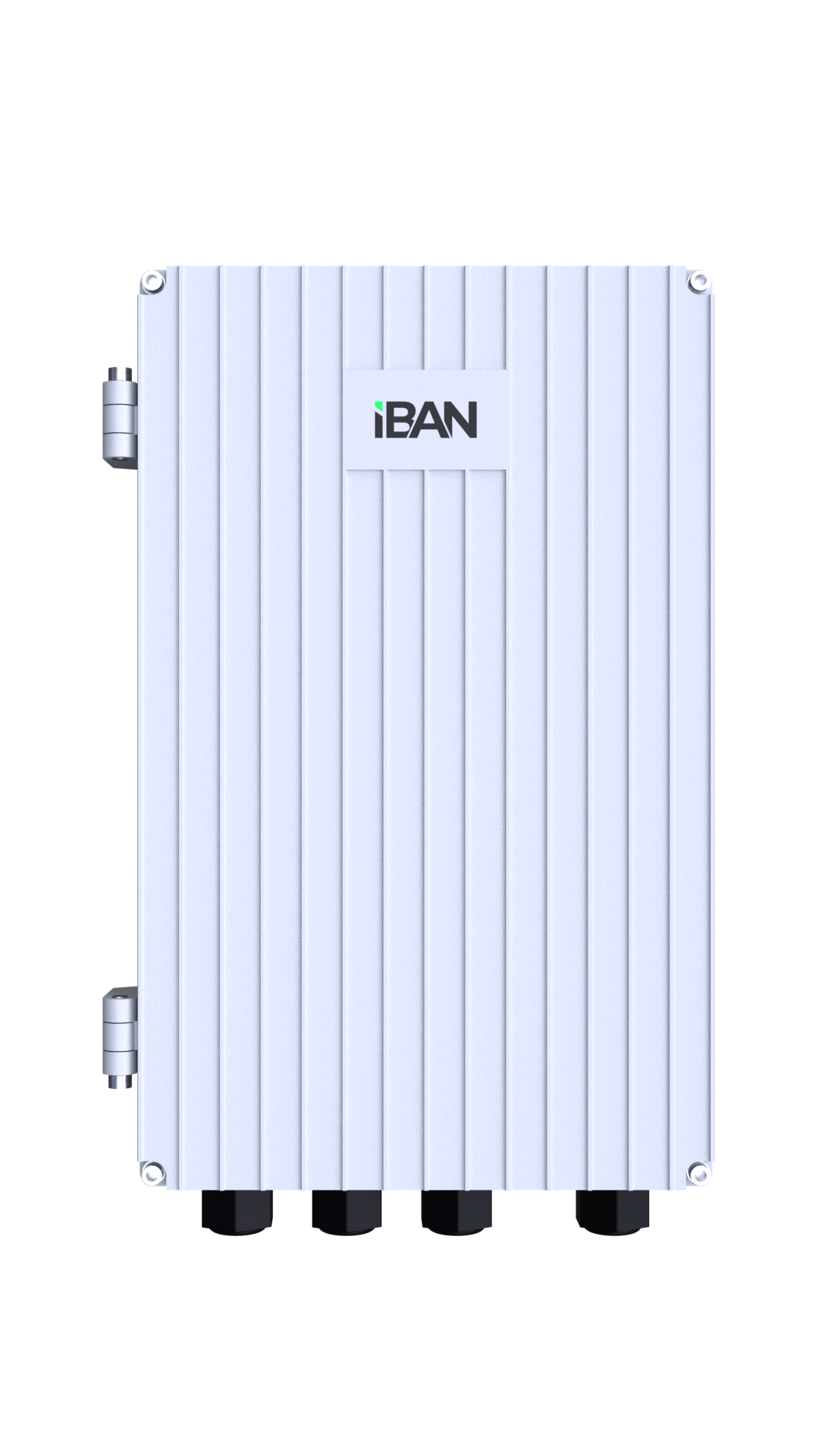

OPS 1500

The IBAN Power OPS 1500 Is A High-Efficiency Outdoor 48 V DC Power System Designed For 4G/5G Base Stations And Remote Radio Units (RRU). It Features A Natural Cooling Structure With An IP65-Rated Enclosure, Delivering Up To 1500W Output Power With Conversion Efficiency ≥95%. The System Is Fully Compatible With IBAN OBS Series LiFePO4 Battery Systems, Supporting Reliable And Scalable Telecom Power Applications.

Get Quote

Request Product Sheet

OPS 1500

Input Voltage Range

90-280Vac

Rated Input Voltage

220Vac

Output Voltage Range

43 - 58Vdc

Rated Output Voltage

54Vdc

Output Power

1500W

Maximum Output Center

30A

Efficiency

>95%

Cooling

Natural cooling

Operatinf Temperature

-25℃ ∼ +55℃

Parallel Support

Up to 4 units

Communication

RS485, Dry Contact

Protecting Level

IP65

Weight

< 5 Kg

Dimension

300mm x 200mm x 90mm

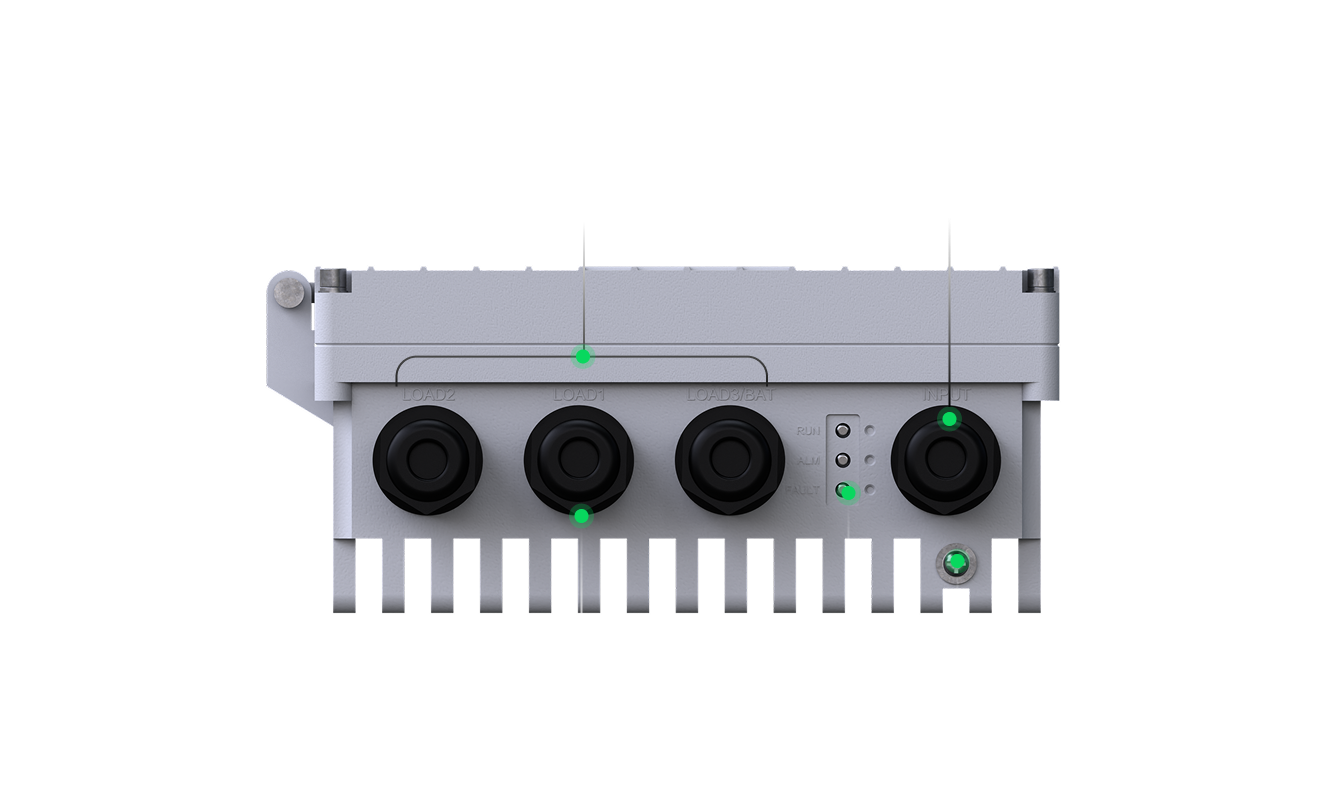

01

Battery Connection Port

02

Status LEDs SOC / Alarm

03

Grounding Point (M6 Screw)

04

DC Output 1-3

05

AC Power Input 90-280Vac

Power Factor Correction (PFC), PF ≥ 0.99
95% System Conversion Efficiency At Full Load
AC / DC Surge And Overvoltage Protection Design
Maintains Full-Load Operation Up To 55°C Ambient Temperature
Full Fault Protection And Alarm Notifications
Seamless Battery Management: Low Voltage Protection, Load Disconnect, Temperature Compensation, Voltage Regulation, Current Limiting, Capacity Calculation, Battery Test
Supports Parallel Operation (Up To 4 Units) With Hardware Synchronization
Remote Monitoring Via RS485 And Dry Contact Interfaces
Certified To UL60950, EN55032 Class A, IEC61000-4-2/4/4-5/4-6/4-11

Engineered for the Real World

Designed for extreme environments, the iBAN outdoor system delivers reliable performance from -40°C to 55°C, with IP65-rated protection against dust and water.
