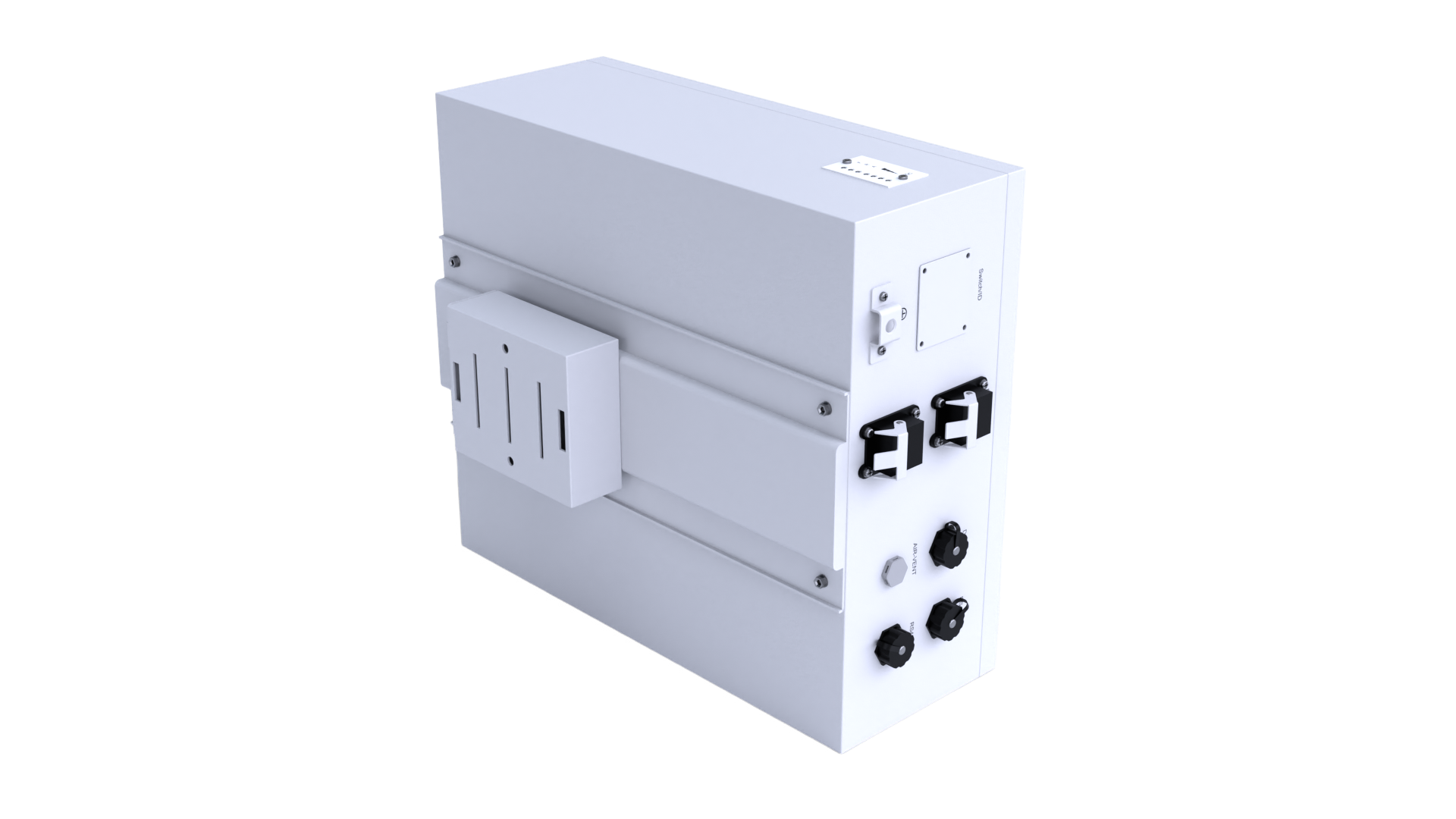

OBS 4850

IBAN Power OBS 4850 Is A 48V Outdoor LiFePO₄ Battery System For 4G/5G Telecom Base Stations. Housed In An IP65-Rated Enclosure With A Cycle Life Of Over 6000 Cycles, OBS4850 Integrates Battery Management, Power Distribution, And Surge Protection.

The System Supports Up To 16 Battery Packs In Parallel And Enables Remote Monitoring Via RS485 And Dry Contact. Wall- Or Pole-Mounted Installation Simplifies Field Deployment And Reduces Both Setup Time And Operational Costs.

Request Product Sheet
OBS 4850
Nominal Voltage
48 V
Nominal Capacity
50Ah
Maximum Charge Current
50A
Maximum Discharge Current
50A
Discharge Cut-off Voltage
40.5V
Operating Temperature
-20℃ ∼ 45℃
Cycle Life
6000cycle
Communication
RS232, RS485
Protection Level
IP65
Weight
30Kg
Dimension
400mm x 450mm x 174mm

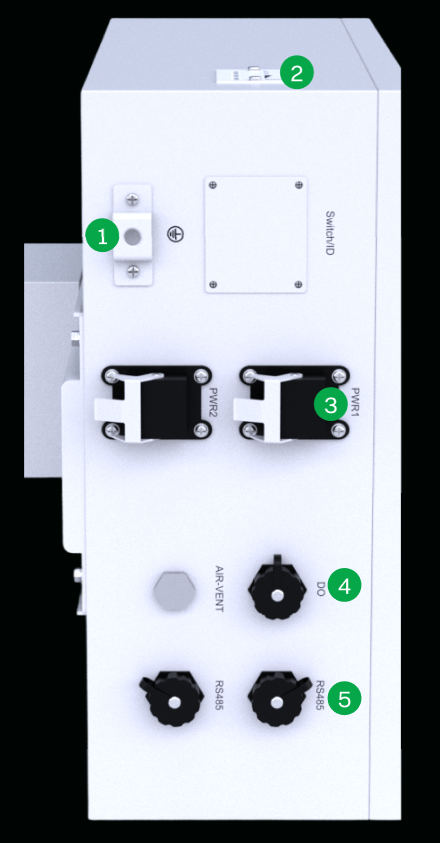

Back Panel
Back Panel Mobile
01
Grounding Point (M6 Screw)
02
Status LEDs SOC / Alarm
03
Power Output Terminal
04
Dry Contact
05
Communication Port
RS485: RJ45 Port

Engineered for the Real World

Designed for extreme environments, the iBAN outdoor system delivers reliable performance from -40°C to 55°C, with IP65-rated protection against dust and water.

Easy Installation Breaking Space Limits
