OBS 48100

IBAN Power OBS 48100 Is A 48V Outdoor LiFePO₄ Battery System Suitable For Telecom Base Stations And Edge Equipment. Housed In An IP65-Rated Enclosure With A Cycle Life Of Over 6000 Cycles, The System Integrates Battery Management, Power Distribution, And Surge Protection.

OBS48100 Supports Up To 16 Battery Packs In Parallel And Enables Remote Monitoring Via RS485 And Dry Contact. Quick-Plug Terminals Simplify Wiring, While Wall- Or Pole-Mounted Installation And A Low-Maintenance Design Help Reduce Service Time And Long-Term Operating Costs.

Request Product Sheet
OBS 48100
Nominal Voltage
48 V
Nominal Capacity
100 Ah
Maximum Charge Current
100A
Maximum Discharge Current
100A
Discharge Cut-off Voltage
56.4V
Operating Temperature
-20℃ ∼ 45℃
Cycle Life
6000cycle
Communication
RS232, RS484, CAN
Protection Level
IP65
Weight
55 Kg
Dimension
620mm x 500mm x 170mm

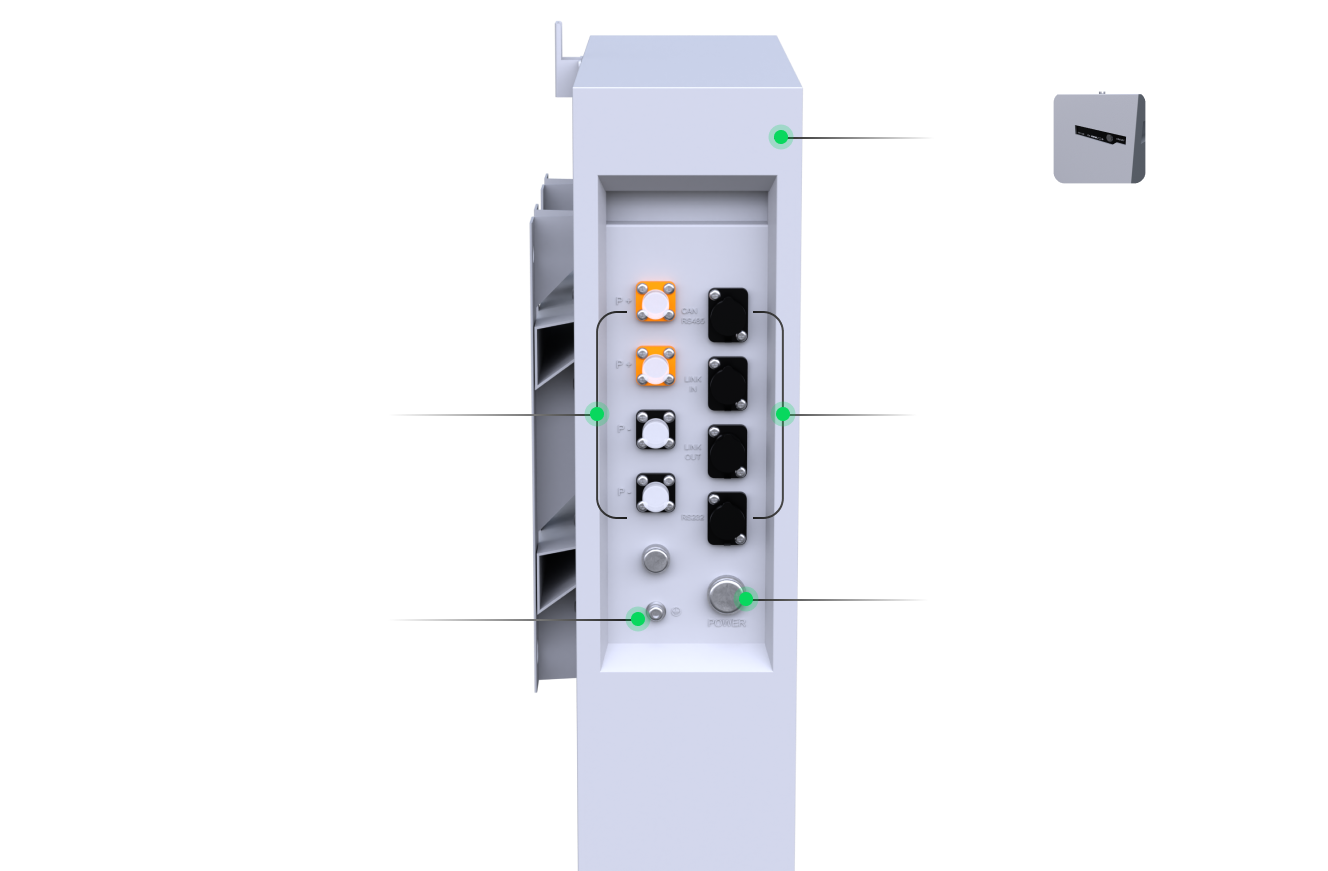

Back Panel

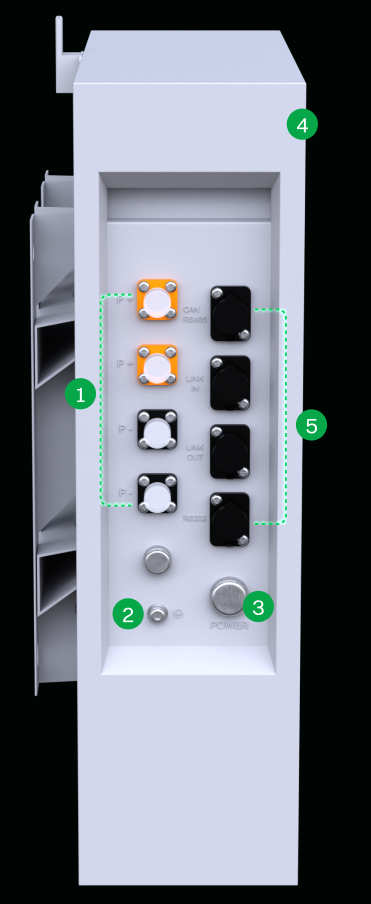

Back Panel Mobile
01
Power Output Terminals
02
Grounding Point (M6 Screw)
03
Power Button / Reset Switch
04
Status LEDs SOC / Alarm
05
Communication Port
RS485/CAN/RS232: RJ45 Port

Engineered for the Real World

Designed for extreme environments, the iBAN outdoor system delivers reliable performance from -40°C to 55°C, with IP65-rated protection against dust and water.

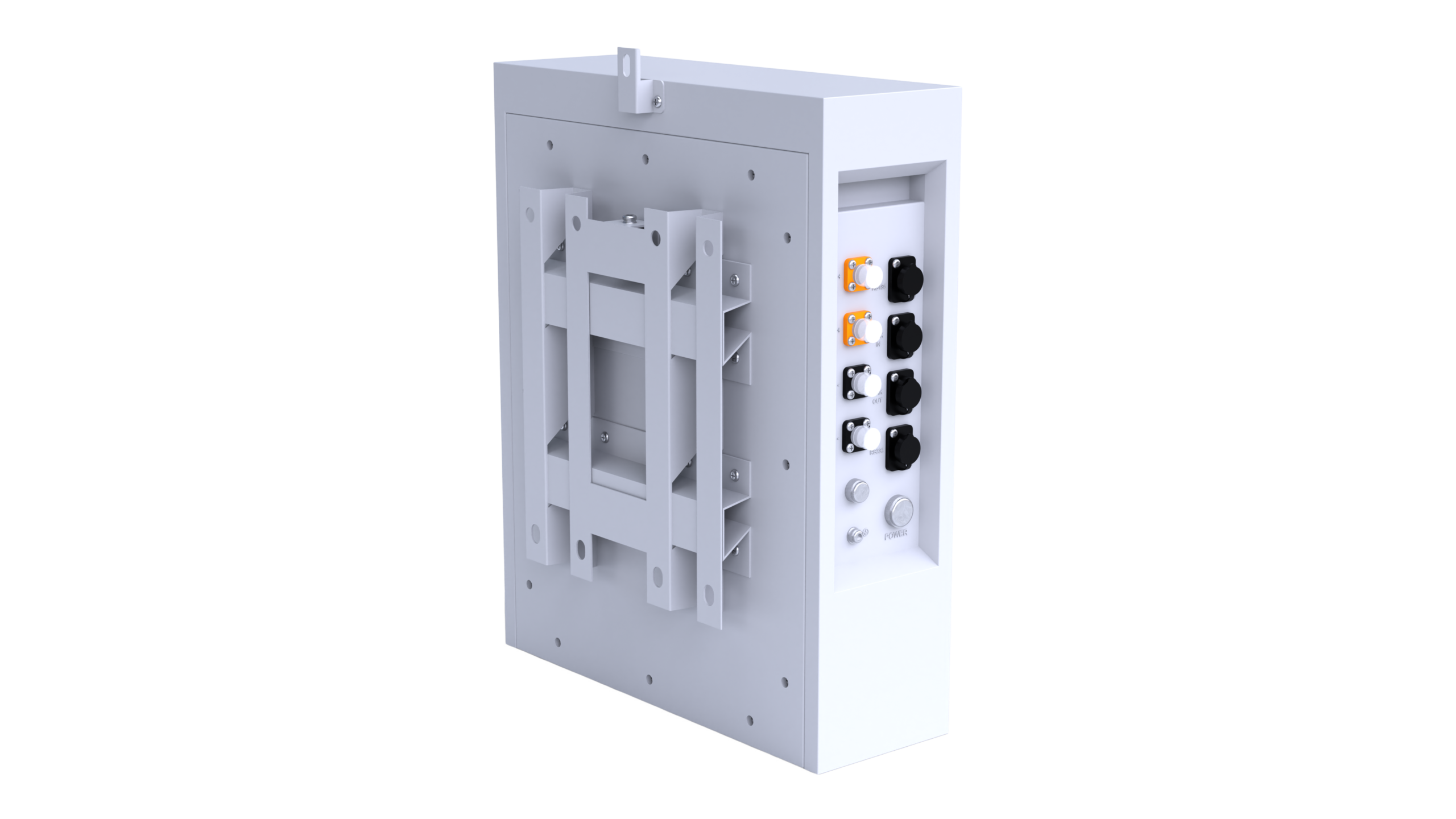

Easy Installation Breaking Space Limits
