OPS 3000

The IBAN Power OPS 3000 Delivers Reliable 48 V DC Power For Outdoor Telecom Sites, Including Micro Base Stations And RRUs. Built With A Natural Cooling Structure And IP65-Rated Aluminum Housing, It Offers 3000W Output Power With Conversion Efficiency Up To 96%, Supporting High-Load Deployments.

The System Provides Integrated Lightning Protection, Battery Backup, And Power Distribution Functions. Fully Compatible With IBAN OBS Series LiFePO₄ Batteries, OPS3000 Ensures Seamless Deployment In Hybrid Power Systems.

Get Quote

Request Product Sheet

OPS 3000

Input Voltage Range

90-280Vac

Rated Input Voltage

220Vac

Output Voltage Range

43-58Vdc

Rated Output Voltage

53.5Vdc

Output Power

3000W

Maximum Output Current

60A

Efficiency

>96%

Cooling

Natural cooling

Operating Temperature

-40℃ ∼ +55℃

Parallel Support

Up to 4 units

Communication

RS485, Dry Contact, CAN

Protection Level

IP65

Weigt

< 8 Kg

Dimension

378mm x 267mm x 74mm

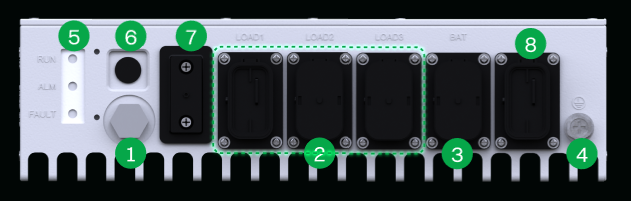

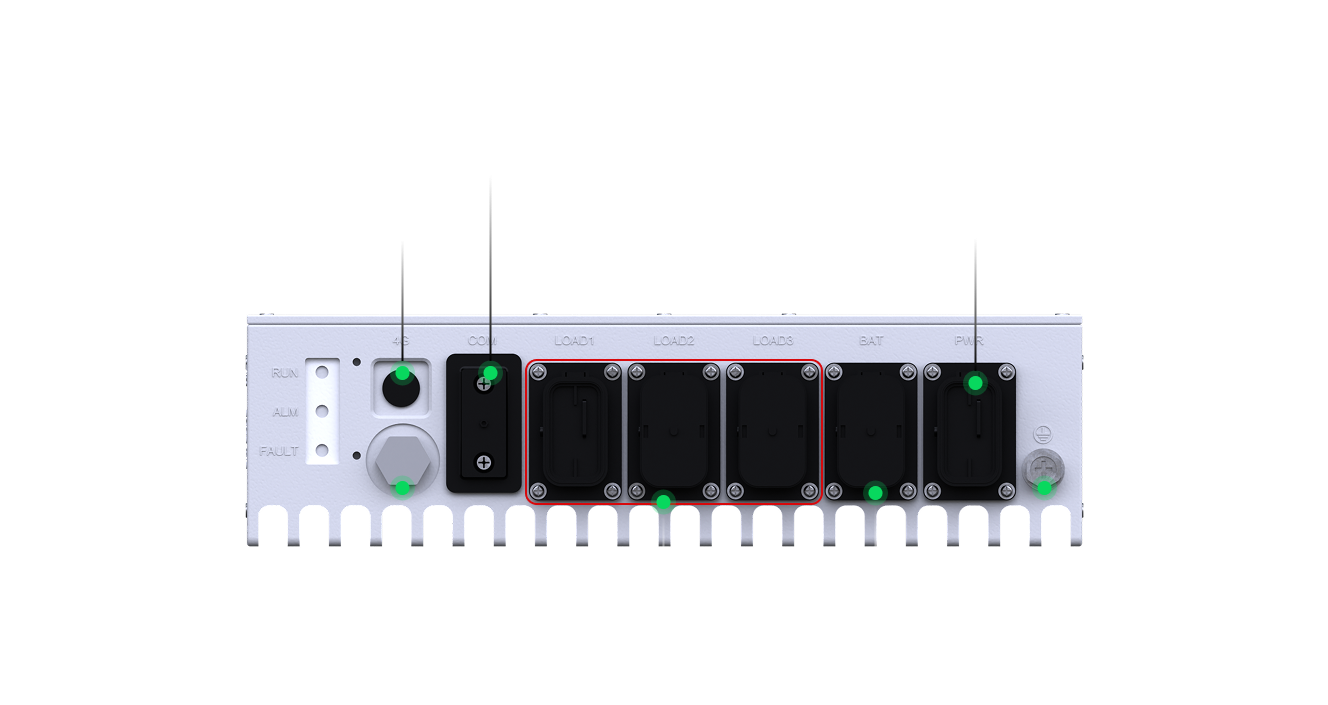

01

Power Switch

02

DC Output 1-3

03

Battery Connection Port

04

Grounding Point (M6 Screw)

05

Status LEDs SOC / Alarm

06

4G Antenna Port

07

Communication Port RS485/CAN

08

AC Power Input
90-280Vac

Power Factor Correction (PFC), PF ≥ 0.99
95% System Conversion Efficiency At Full Load
AC / DC Surge And Overvoltage Protection Design
Maintains Full-Load Operation Up To 55°C Ambient Temperature
Full Fault Protection And Alarm Notifications
Seamless Battery Management: Low Voltage Protection, Load Disconnect, Temperature Compensation, Voltage Regulation, Current Limiting, Capacity Calculation, Battery Test
Supports Parallel Operation (Up To 4 Units) With Hardware Synchronization
Remote Monitoring Via RS485 And Dry Contact Interfaces
Certified To UL60950, EN55032 Class A, IEC61000-4-2/4/4-5/4-6/4-11 Standards

Engineered for the Real World

Designed for extreme environments, the iBAN outdoor system delivers reliable performance from -40°C to 55°C, with IP65-rated protection against dust and water.
