DC POWER DISTRIBUTION UNIT
# 19" #1U

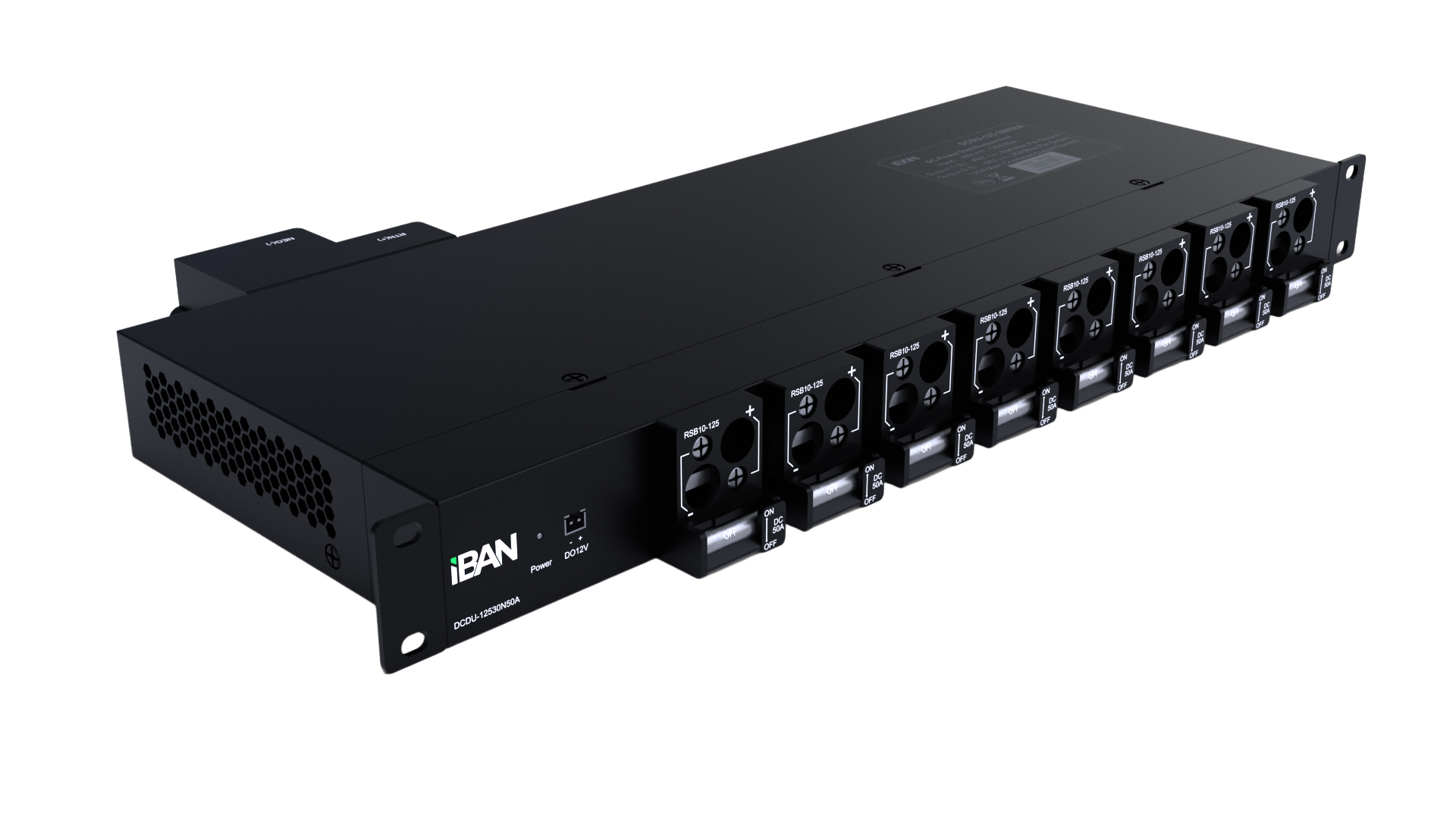

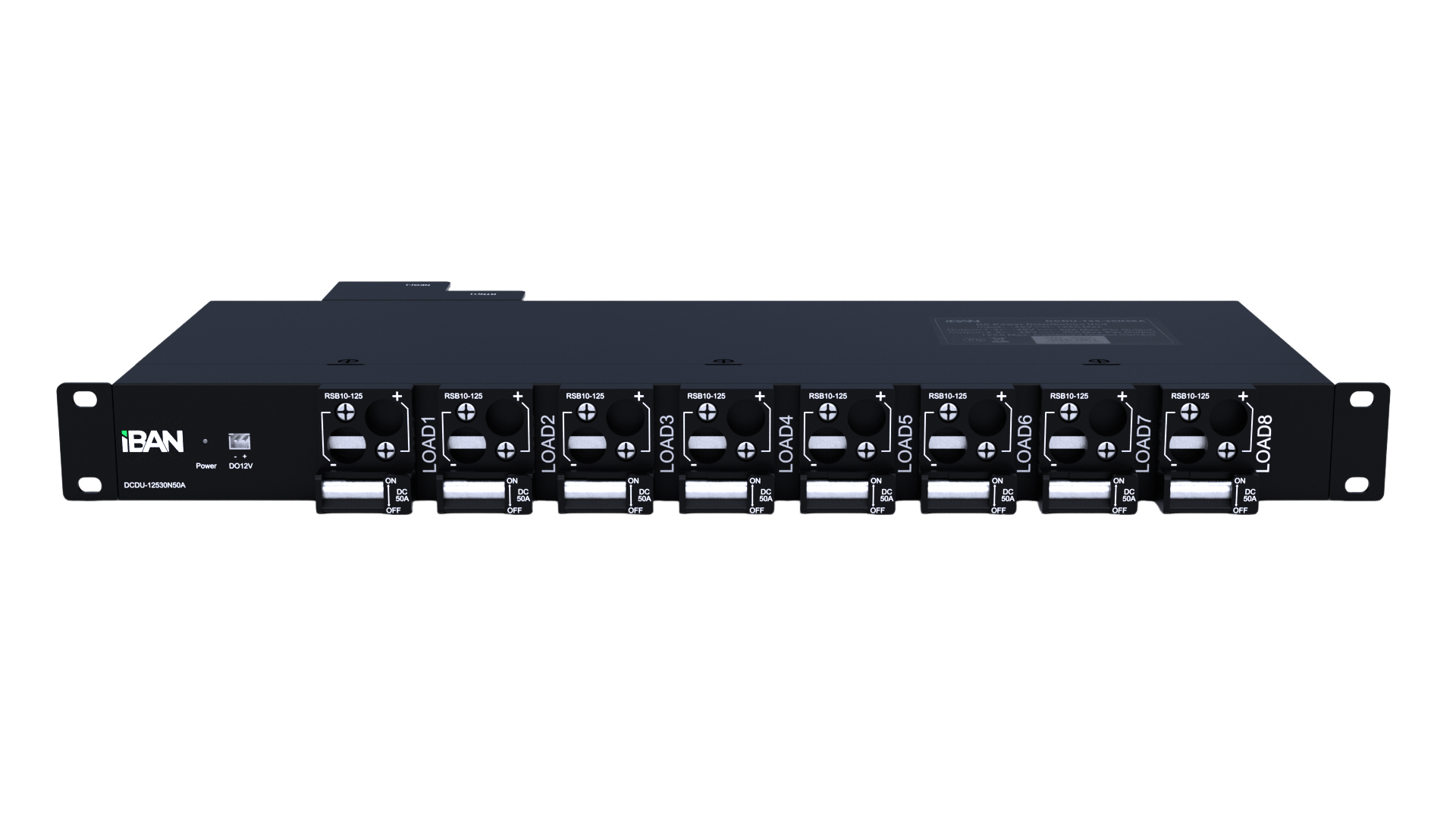

The IBAN Power DCDU Is A 1U 19-Inch Rack-Mountable DC Power Distribution Unit Designed For 48 V Telecom Systems. It Features One Input And Eight Independent Outputs, Each Protected By Pluggable Circuit Breakers (2×50A And 6×30A) For Easy Maintenance And Reliable Power Distribution.

Request Product Sheet
DCDU
System Voltage
48Vdc (40V - 60V)
Rated Load Voltage
125A
Circuit Breakers
20 × 50A (Output 1-2), 6 × 30A (Output 3-8))
Alarm
12Vdc, max 10mA
Input Cable Size
10mm²-38mm²
Output Cable Size
6mm²-35mm²
Operating Temperature
-20℃ ∼ +65℃
Storage Temeperature
-40℃ ∼ +85℃
Protection Level
IP20
Enclosure Material
Galvanized Steel
Dimensions
482mm x 43mm x 170mm

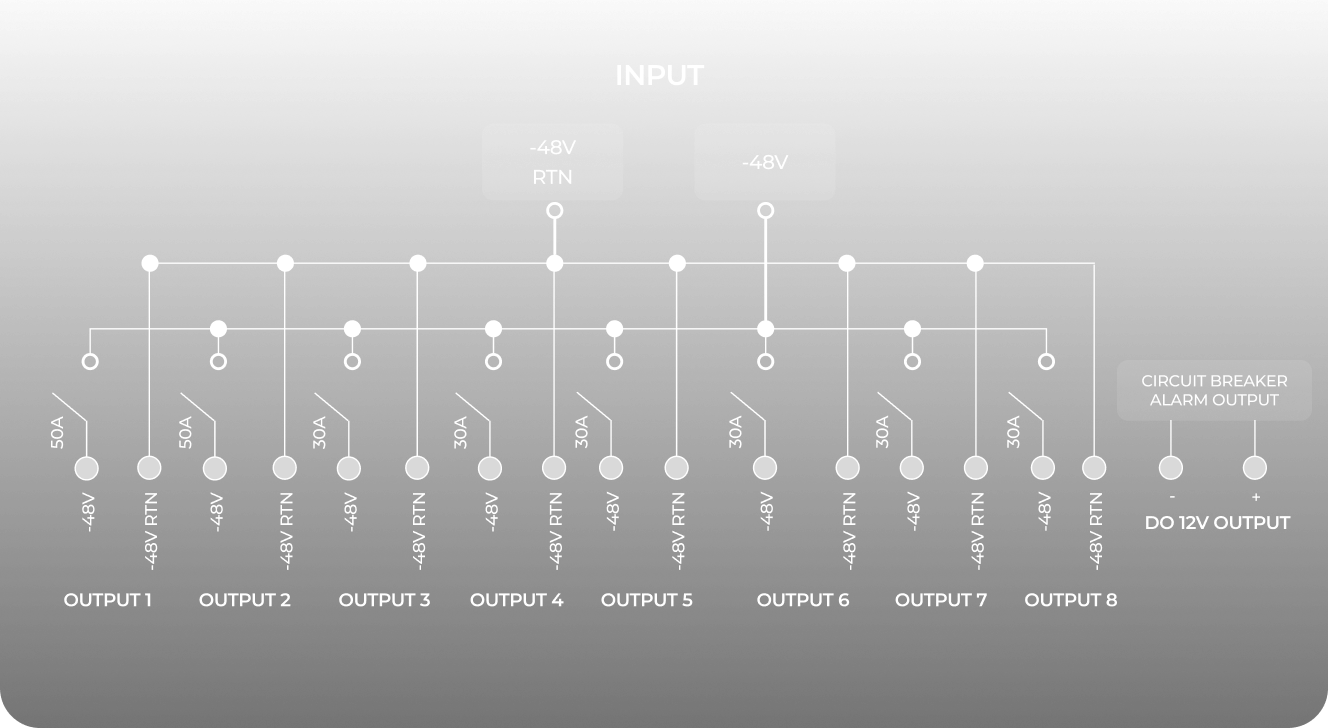

Back Panel
Back Panel Mobile
