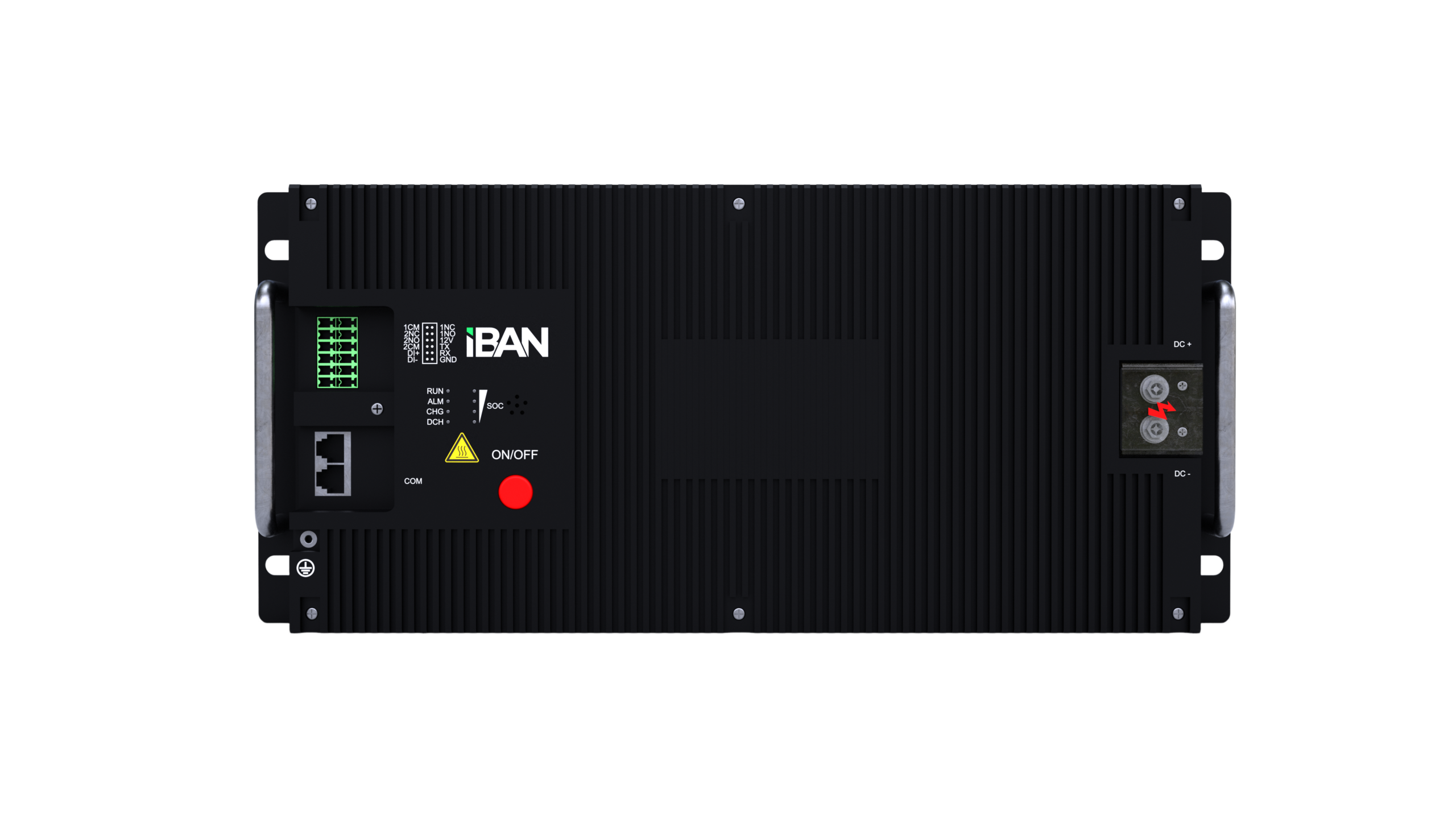

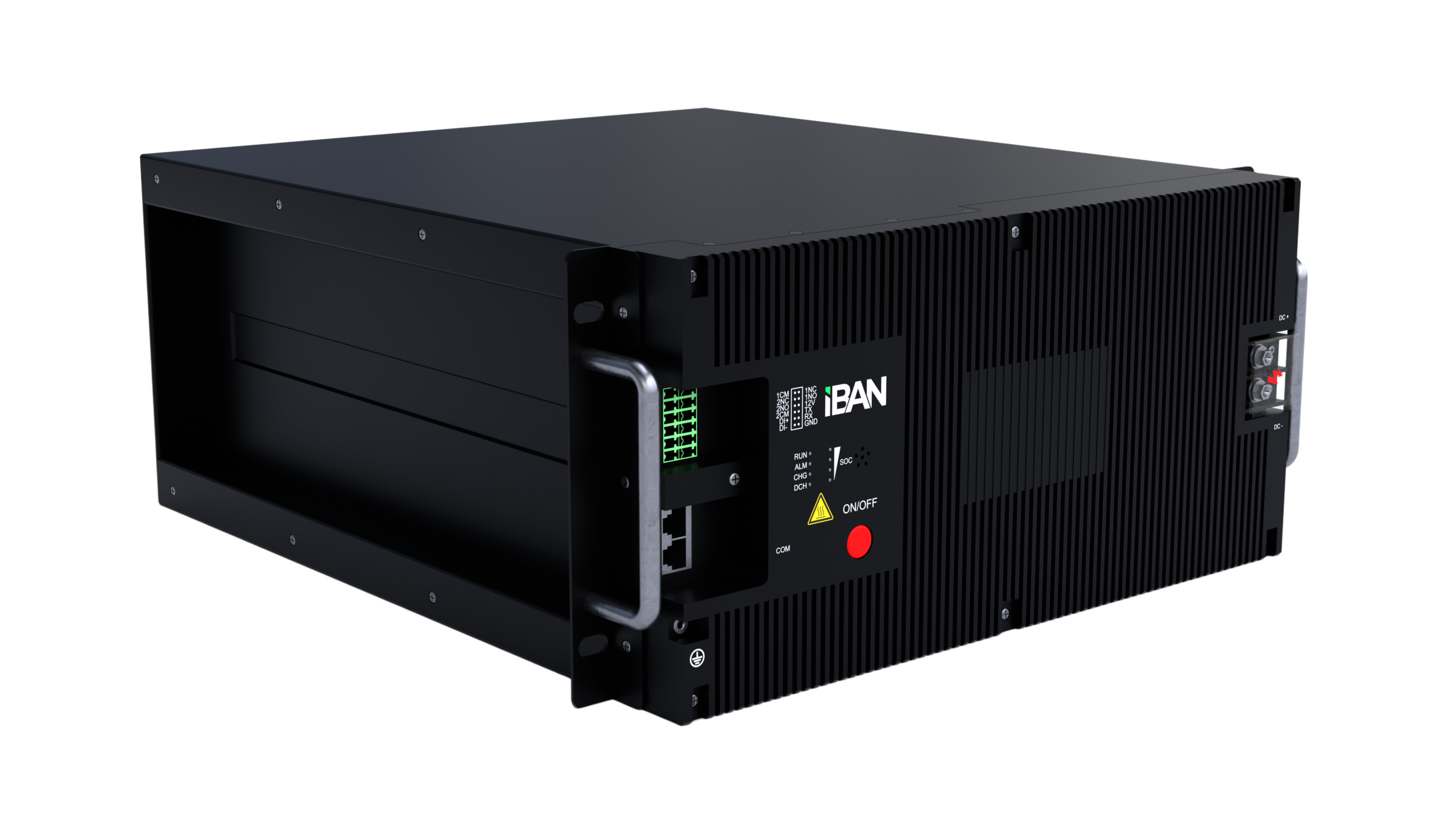

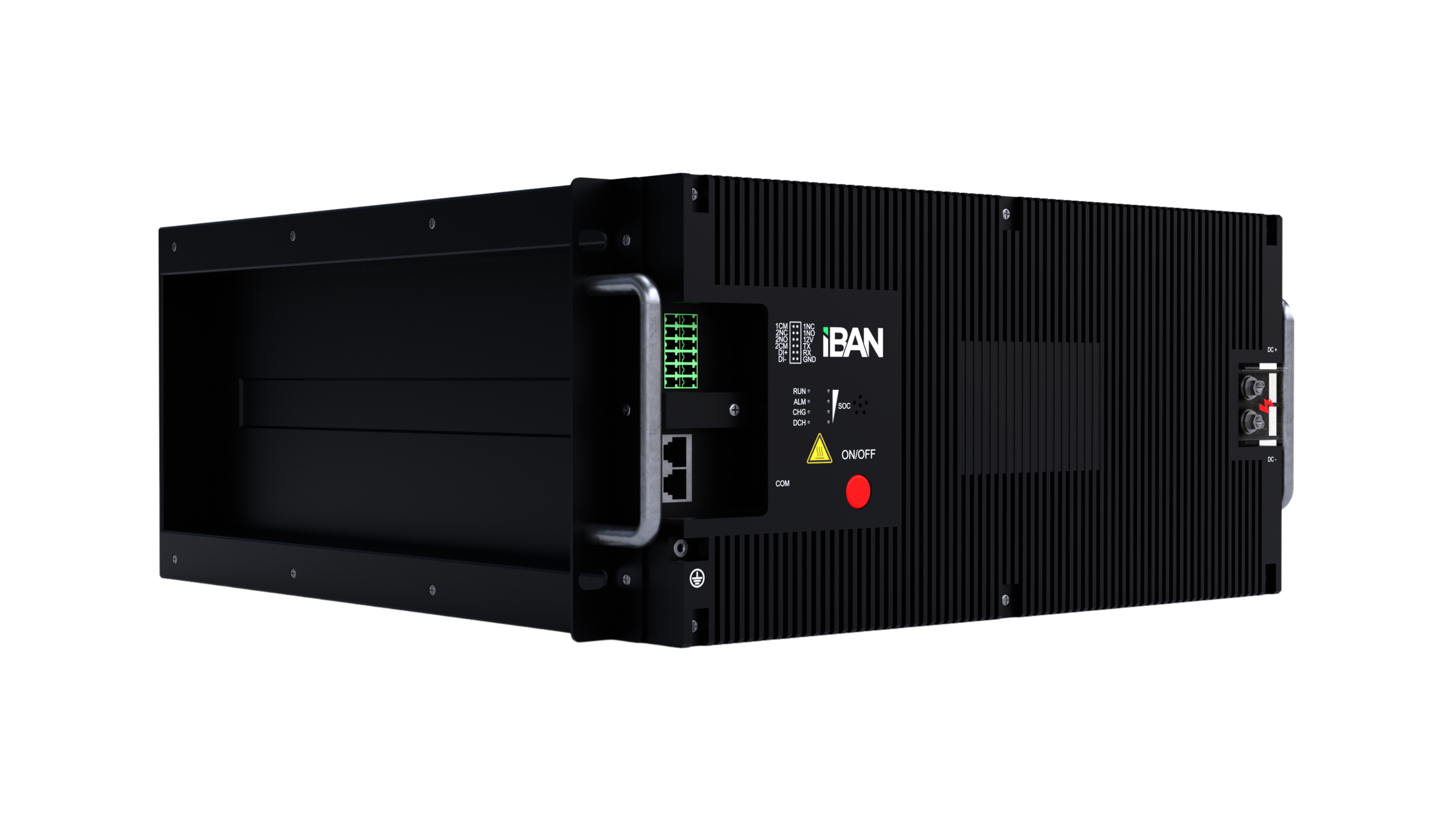

EBS 48200S1

Classic Battery

# 19” #5U

High-Density, Intelligent, and Scalable

The iBAN Power EBS 48200S1 is an intelligent upgrade of the EBS Classic. It features active current sharing, voltage boost, and remote boost to minimize line losses and enhance power stability. Its 19” rack-mount design supports up to 32 parallel units, enabling seamless and scalable expansion.

Designed for easier deployment, it supports mixed use with lead-acid batteries, legacy systems, and varied capacities. Built-in BMS, SNMP, GPS, and peak shaving functionality ensure smart energy optimization and remote manageability.

Get Quote

Request Product Sheet

EBS 48200S1

Nominal Voltage

48 V

Nominal Capacity

200 Ah

Maximum Charge Current

100A

Maximum Discharge Current

100A

Discharge Cut-Off Voltage

40.5V

Cycle Life

4000cycle@80%DOD

Operating Temperature

-20°C ~ +55°C

Communication Modules

RS485/CAN/SNMP (Optional)

Weight

78Kg

Dimensions

442mm x 520mm x 222mm

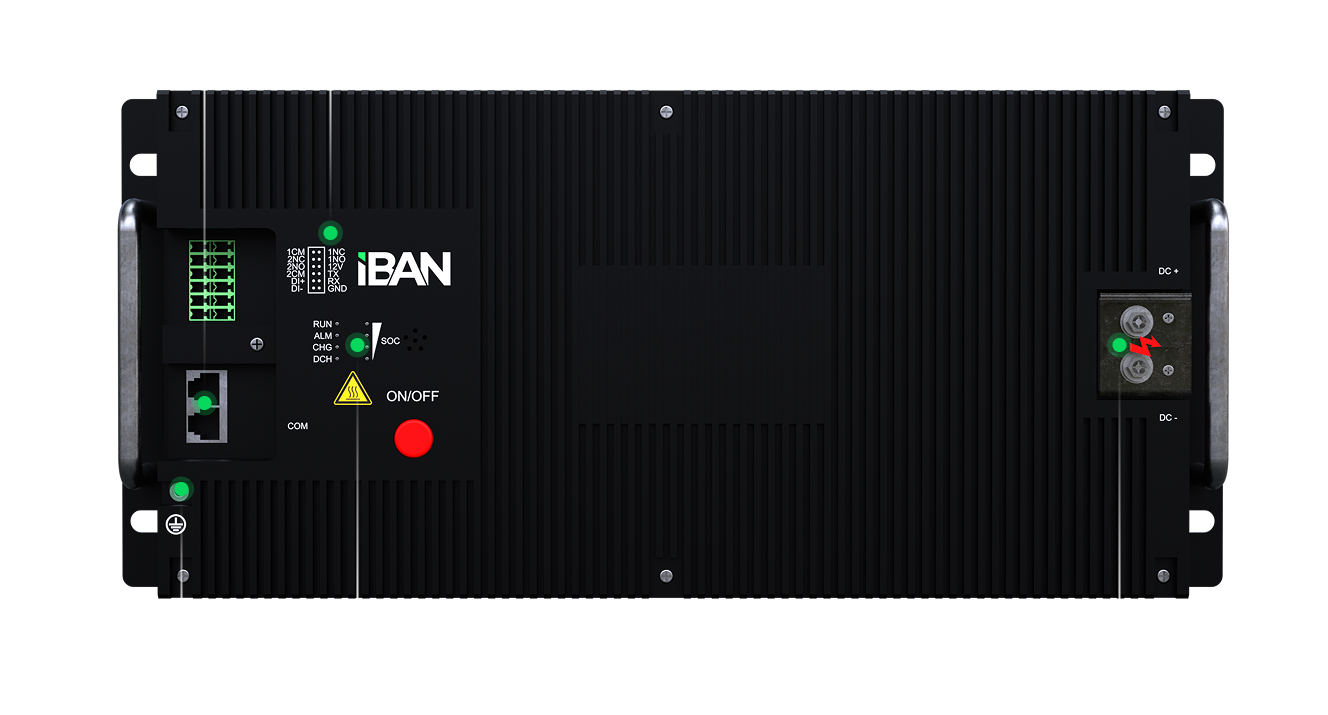

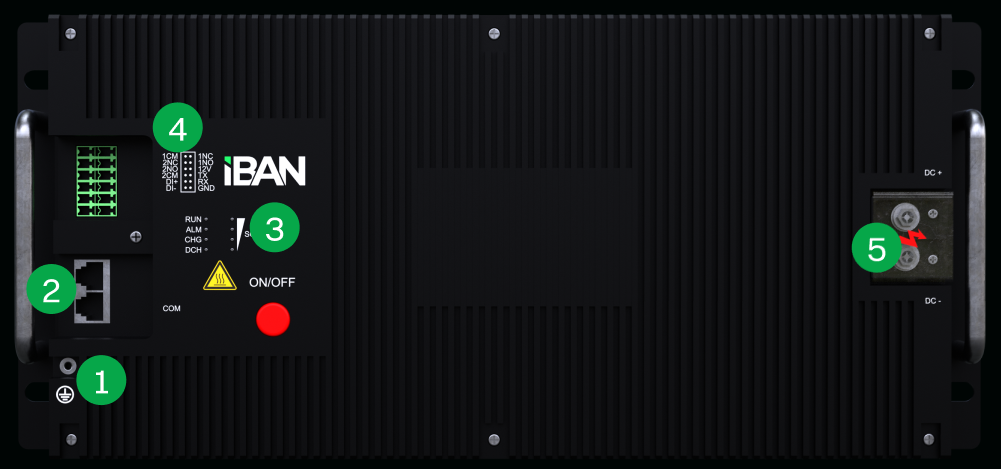

Grounding Point (M6 Screw)

RJ45

Status LEDs SOC/Alarm

Dry Contact Terminals

Power Output/ Input Terminals

Mix Battery Management

Let's Make Deployment Easier

Lead-acid & Lithium Battery

Old & New Battery

Different Capacities

SMART ENERGY, SMART THINKING

Peak Shaving and Valley Filling with iBAN Battery

Charge

Discharge

lower Operational Costs

Improve Power Stability

Reduce Grid Dependency

Smart EBS

Classic EBS

Long-Distance DC Transmission

Peak Shaving and Valley Filling Support

Mixed Battery Management

Short-Distance DC Transmission

Non Support

Smart battery discharger logic

Smart Lithium Battery Discharge

Classis Lithium Battery or Lead-acid Battery

Warning: Undefined array key "number" in /home/yziban/public_html/beta.ibanpower.com/wp-content/themes/iban-power-theme/template-parts/content-product-template-3.php on line 354

When the grid power is disconnected, the smart battery starts discharging at a constant 54V.

Warning: Undefined array key "number" in /home/yziban/public_html/beta.ibanpower.com/wp-content/themes/iban-power-theme/template-parts/content-product-template-3.php on line 354

When the smart battery reaches 90% DOD (10% SOC), its output voltage drops to 45V, and the classic battery or lead-acid battery starts discharging.

Warning: Undefined array key "number" in /home/yziban/public_html/beta.ibanpower.com/wp-content/themes/iban-power-theme/template-parts/content-product-template-3.php on line 354

When the classic battery voltage drops to 45V, the smart battery and other batteries discharge together until reaching the 40.5V protection voltage.

Mix Battery Management

SMART ENERGY, SMART THINKING

Smart EBS

Classic EBS

Smart battery discharger logic
