EPS 1000
EPS 1000
EPS 1000

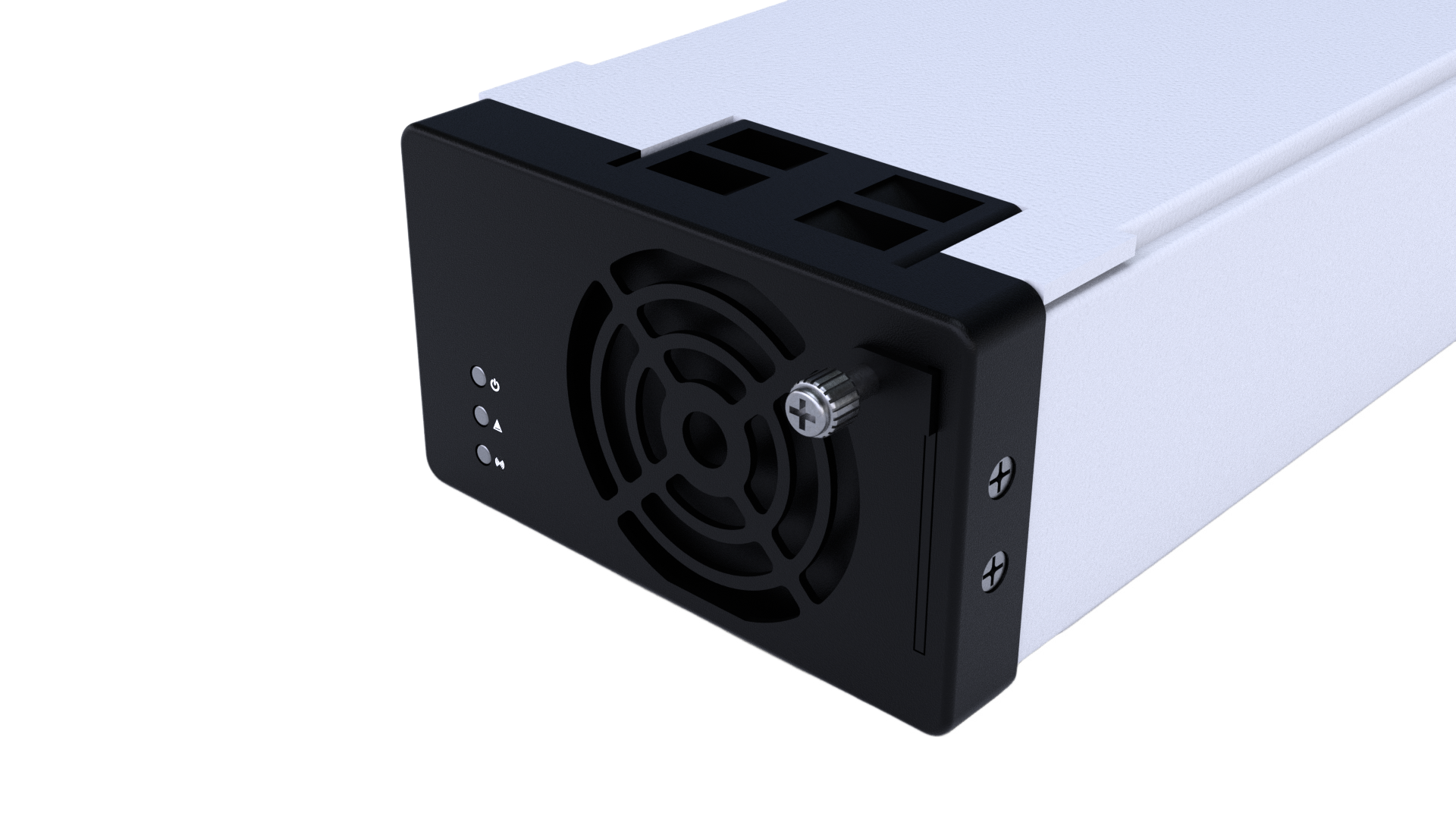

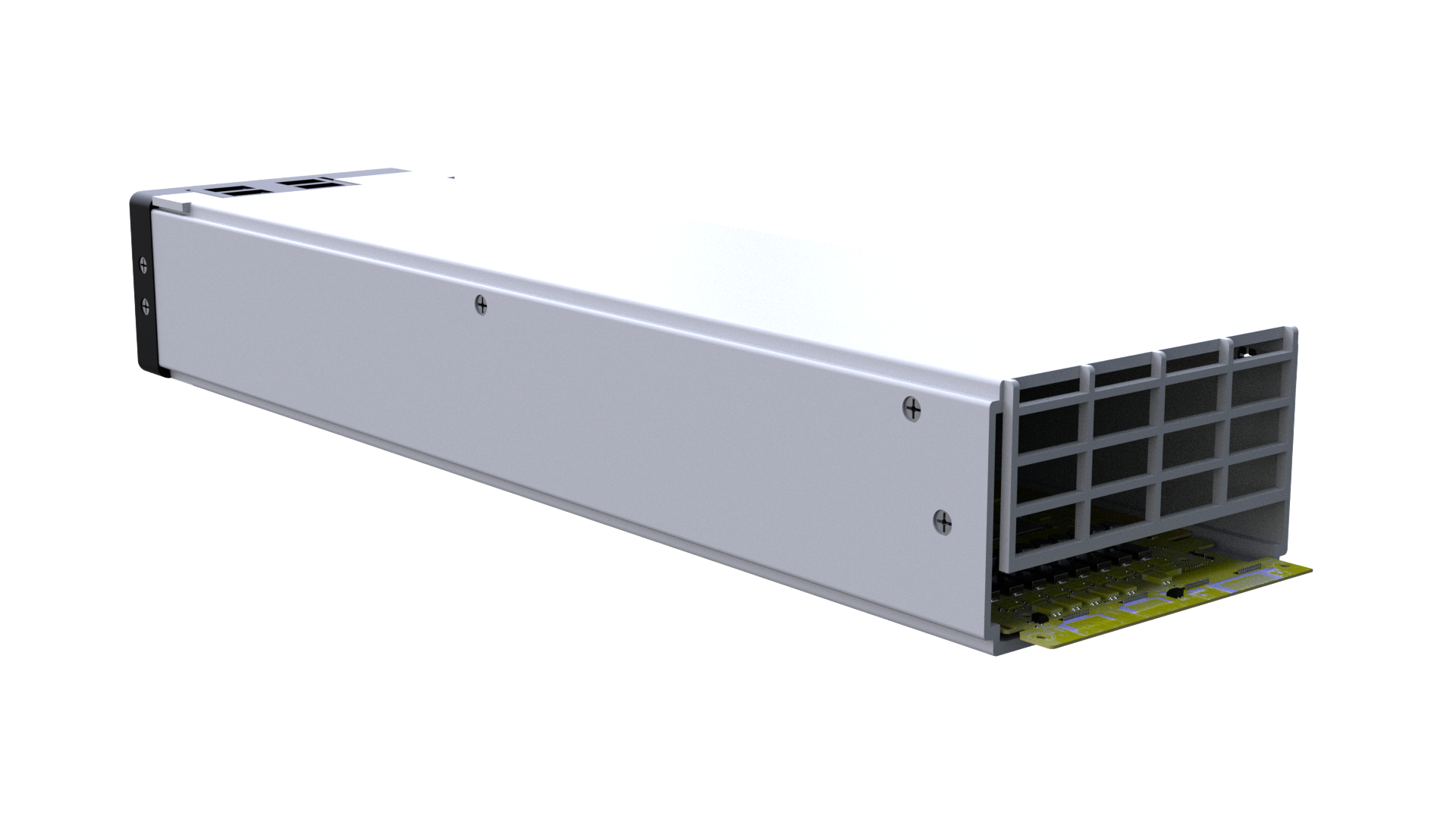

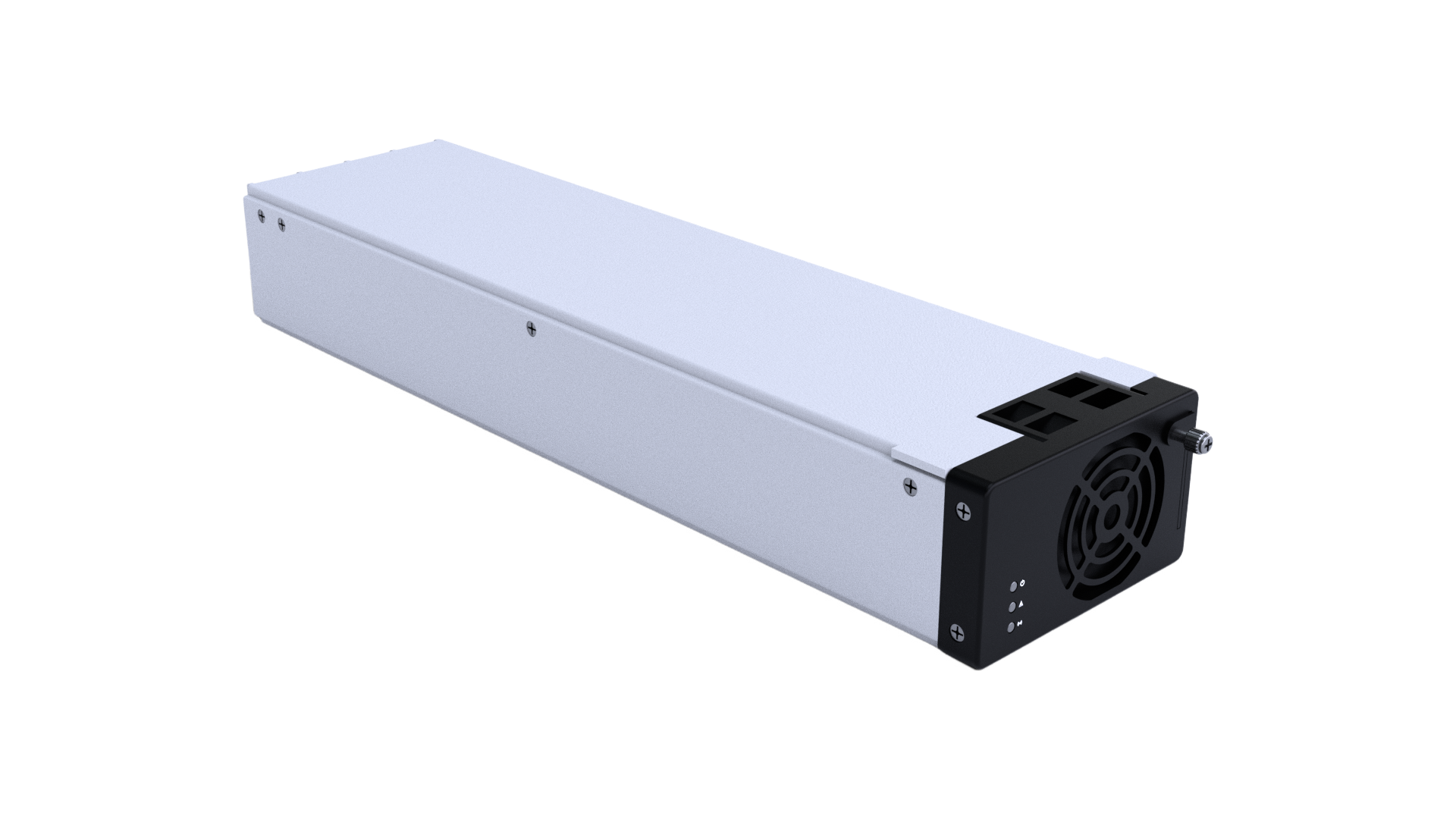

The IBAN Power EPS 1000 Is A High-Efficiency 48V Rectifier Module Designed For Use With The IBAN EPS4860 DC Power System. It Delivers Up To 1000W At 53.5Vdc With Peak Efficiency Over 96%, And Supports A Wide Input Voltage Range Of 85–265 Vac. Up To 48 Modules Can Operate In Parallel With CAN Communication For System Control, With Comprehensive Protection For Telecom-Grade Reliability.

Get Quote
Request Product Sheet
EPS 1000
Input Voltage
80 - 300Vac
Nominal Output Current
53.5Vdc
Max Output Current
20.8A
Operating Temperature
-40℃ ∼ +55℃
Output Voltage
42 - 58Vdc
Max Output Power
1000W
Efficiency
>95%
Protection
OVP,OCP,OTP,SCP,UVP
Weight
< 2Kg
Dimension
217mm x 40mm x 72mm

Ideal For IBAN Hybrid Power System

  • Hot-Swappable For Easy Maintenance And Replacement
  • Forced Air Cooling With Temperature-Controlled Fan
  • Thermal Protection With Automatic Recovery
  • Power Factor Correction, PF ≥ 0.99 At 220Vac
  • Wide AC Input Voltage
  • 1000W Constant Power Output At 53.5Vdc, Efficiency ≥ 96%
  • Input/Output Protection: OVP, UVP, SCP, OCP, OTP
  • Supports Up To 48 Modules In Parallel With Load Sharing
  • CAN Communication Interface For Monitoring And Control
  • Microprocessor-Controlled For Precise Regulation

Related Solution INDOOR POWER SYSTEM

Related Solution INDOOR POWER SYSTEM
Contact

Related Product

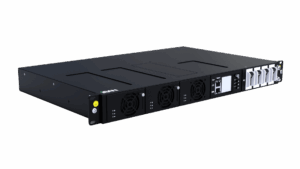

EPS 4860
